TB-NW50 HD · Flagship Platform
No-WiFi · HD PTZ

5" HD PTZ baby monitor

The flagship: a 5" 1280×720 parent unit with H.264 video and a motorized pan-tilt camera that covers the whole room. Premium private-label base — still fully No-WiFi.

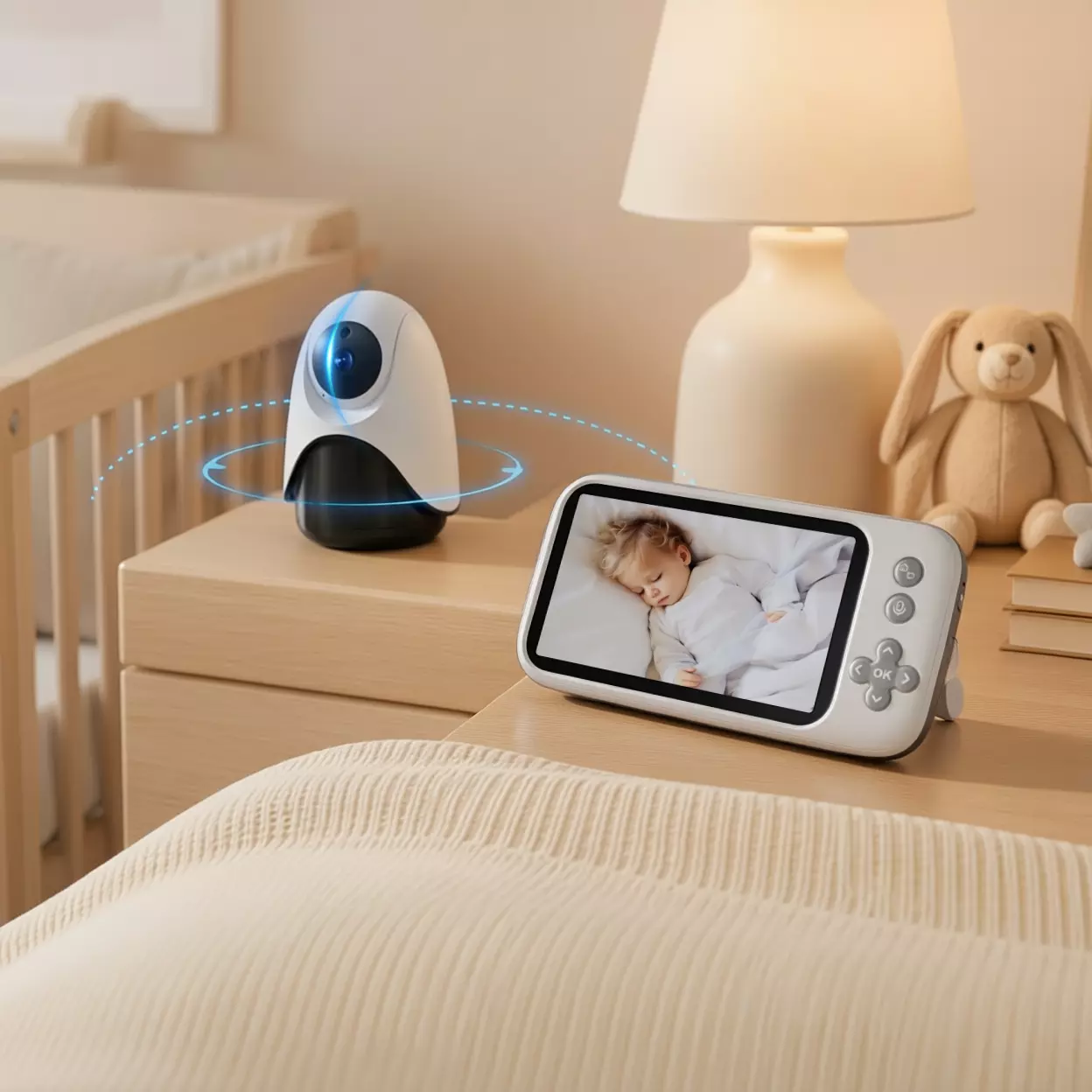

TB-NW50 HD baby monitor
PTZ 359° / 90° 5" HD
5"
1280×720 HD
H.264
0.9MP
PTZ
359° / 90°
100m
Open Range
Key features

HD clarity, full-room coverage

5" HD Display
1280×720 TFT-LCD non-touch parent unit.
PTZ 359° / 90°
Motorized pan & tilt for the whole room.
HD Camera
0.9MP, 1280×720, H.264 encoding.
No-WiFi 2.4GHz
Private local link, 100 m / 40 m.
IR Night Vision
Infrared night vision supported.
Two-Way Talk
Talk to baby from the parent unit.
Temp · Lullaby · Alerts
Temperature, soothing & range alerts.
Room coverage

Pan, tilt, and see the whole nursery

The motorized PTZ head gives you full room visibility from a fixed mount — no repositioning needed. Remote-controlled pan and tilt from the parent unit.

359°
Pan coverage
90°
Tilt range
70°
Field of view
Supported
IR night vision

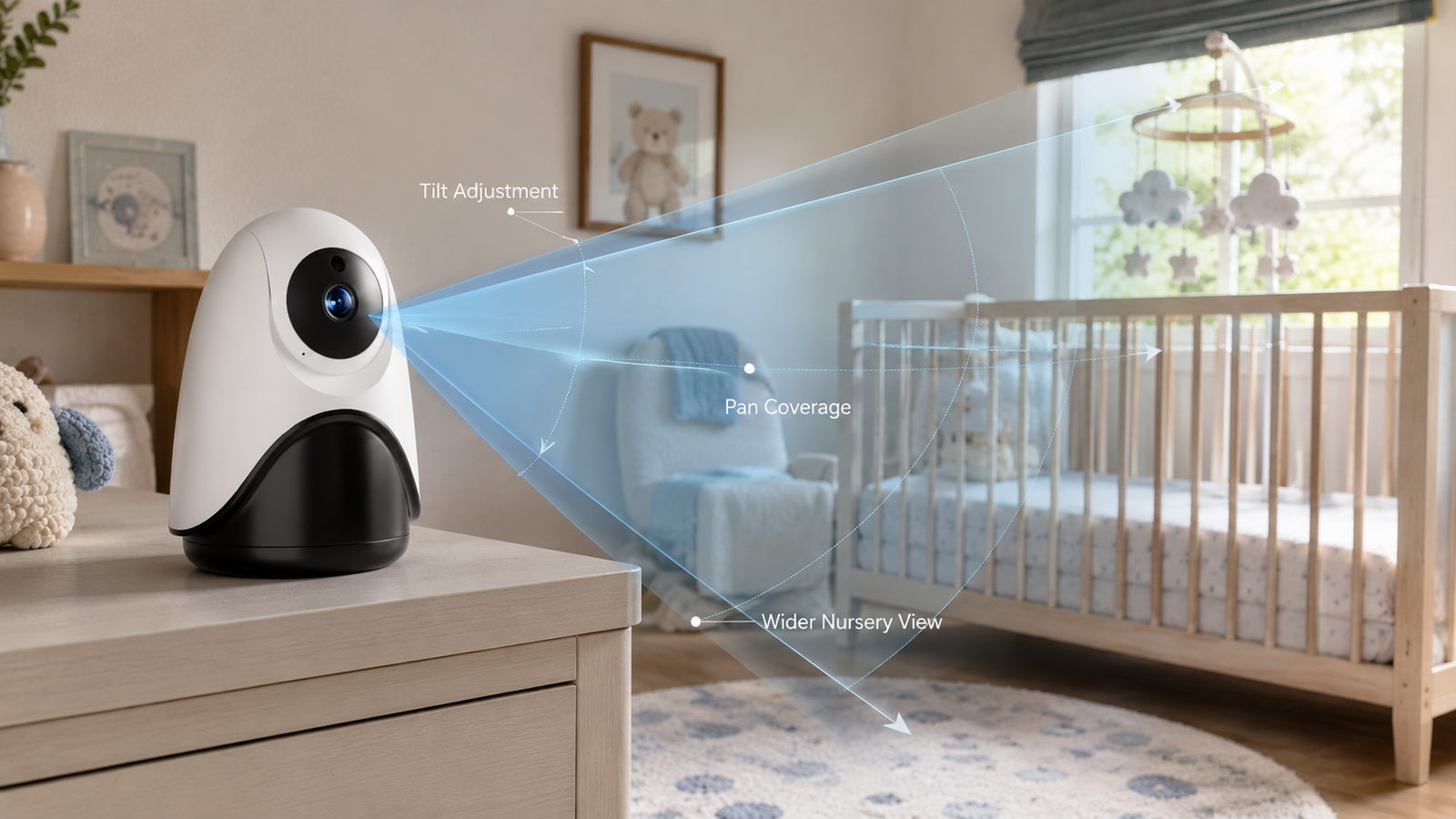

PTZ Coverage diagram
Fig. 01 PTZ Coverage
359° pan · 90° tilt
Full-room pan
359° motorized rotation covers every corner of the nursery.
Vertical tilt
90° tilt tracks from floor to ceiling without repositioning.
Parent-unit control
Pan and tilt controlled directly from the 5" parent screen.
In the home

Stay Connected Around the Home

Watching over the crib

Watching over the crib

Camera unit · Nursery
Through the night

Through the night

Bedside · IR mode
Hands-free in the kitchen

Hands-free in the kitchen

Portable parent unit
Simple for anyone

Simple for anyone

No app setup
Always within reach

Always within reach

Parent unit · Living room
Bedtime routine

Bedtime routine

Evening
Night check

Night check

IR night vision · 5m
Stay connected

Stay connected

100m range
Parent unit

Hold it. Stand it. Always connected.

The 5" parent unit adapts to your moment — handheld for a quick glance, propped up hands-free while you cook, work, or rest.

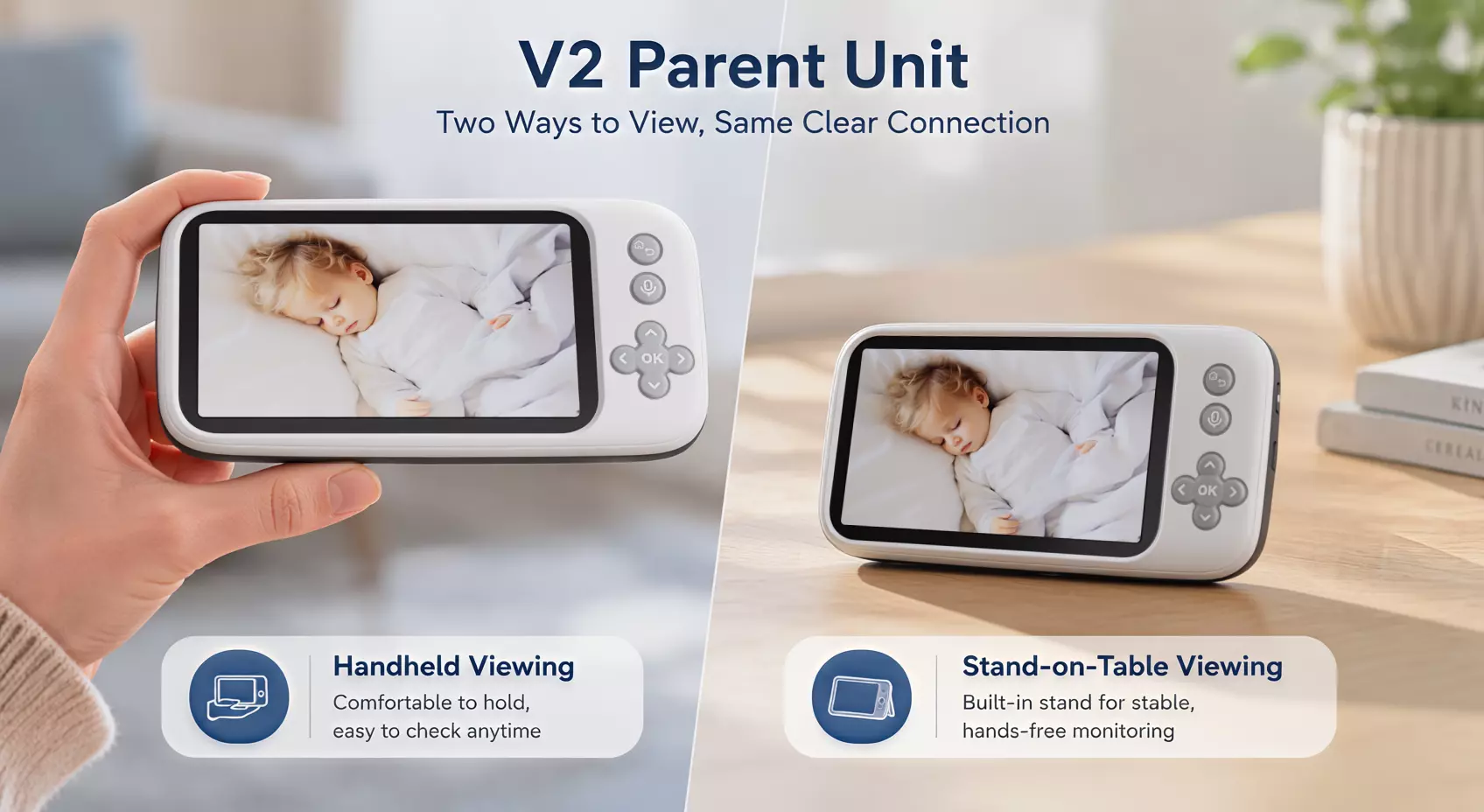

V2 Parent Unit — handheld and stand viewing
5" HD Parent Unit
Handheld viewing
Comfortable to hold and carry — check in from anywhere in the room.
Stand-on-table
Built-in kickstand props the unit upright for hands-free monitoring.
Type-C charging
4000mAh built-in battery with universal Type-C charging.
Technical specifications

TB-NW50 HD full parameters

5"
1280×720 HD Display
PTZ
359° Pan · 90° Tilt
H.264
0.9MP HD Encoding
280m
Open Range · No-WiFi
Display
Screen size5"
ResolutionTFT-LCD · 1280×720
Parent-unit battery4000mAh
ChargingType-C
Features
Two-way talkYes
Temperature monitoringYes
Feeding reminder · lullabyYes
Low-battery / range alertYes
Dimensions / weightConfirmed per project
Camera
Sensor / pixels900,000 px
Capture / transmission1280×720
Video encodingH.264
Field of view70°
Night visionAuto IR
PTZ (pan / tilt)359° / 90°
Connection
Connection2.4GHz · No-WiFi
App / cloudNone
Range (open / indoor)280 m / 40 m
Engineering depth

Built to be understood

Every component, signal path, and housing detail is documented and reviewed — so your team can evaluate, modify, and build on a foundation you can actually see.

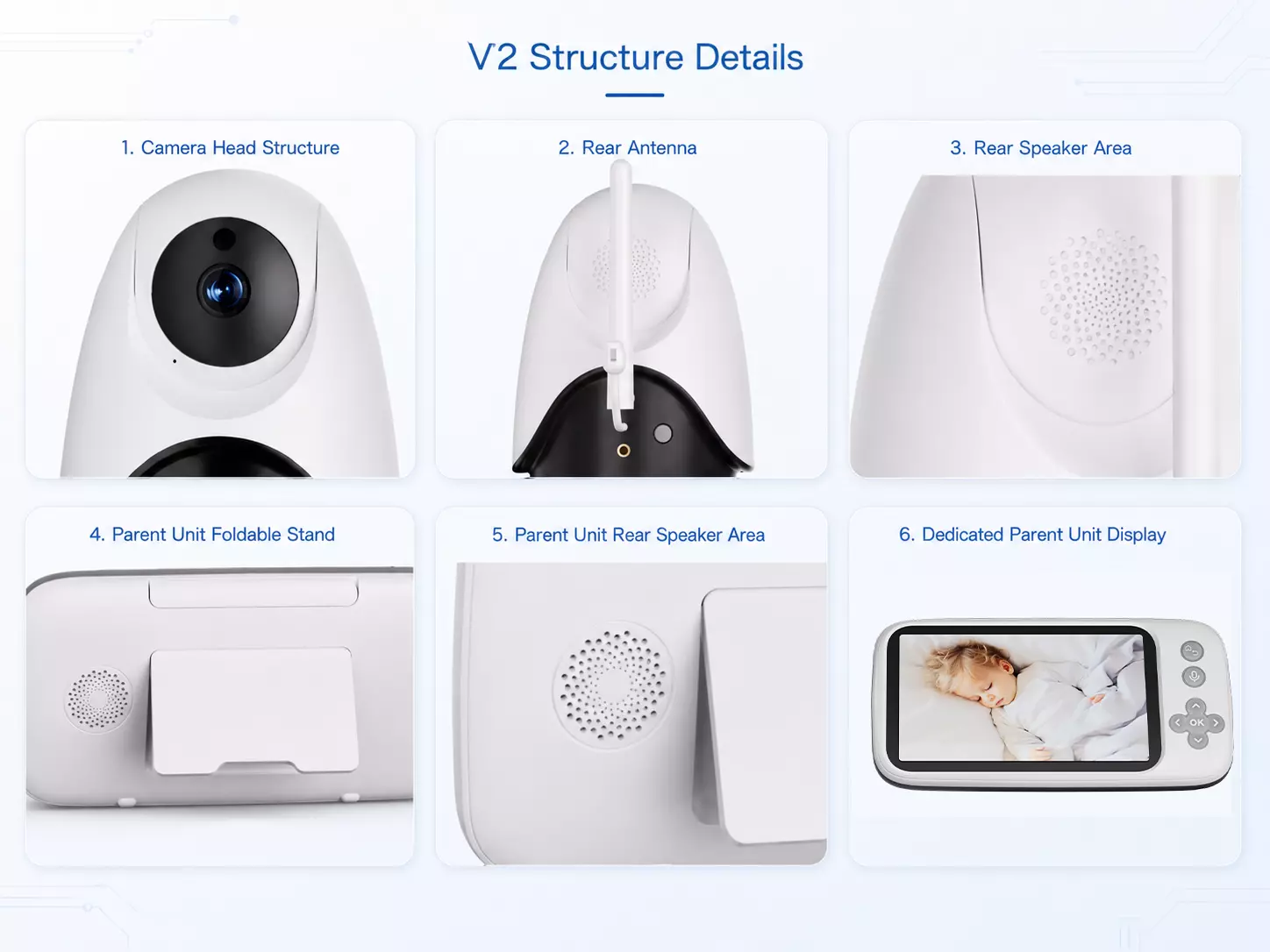

V2 Product Detail Matrix
Product Detail Matrix Full system view

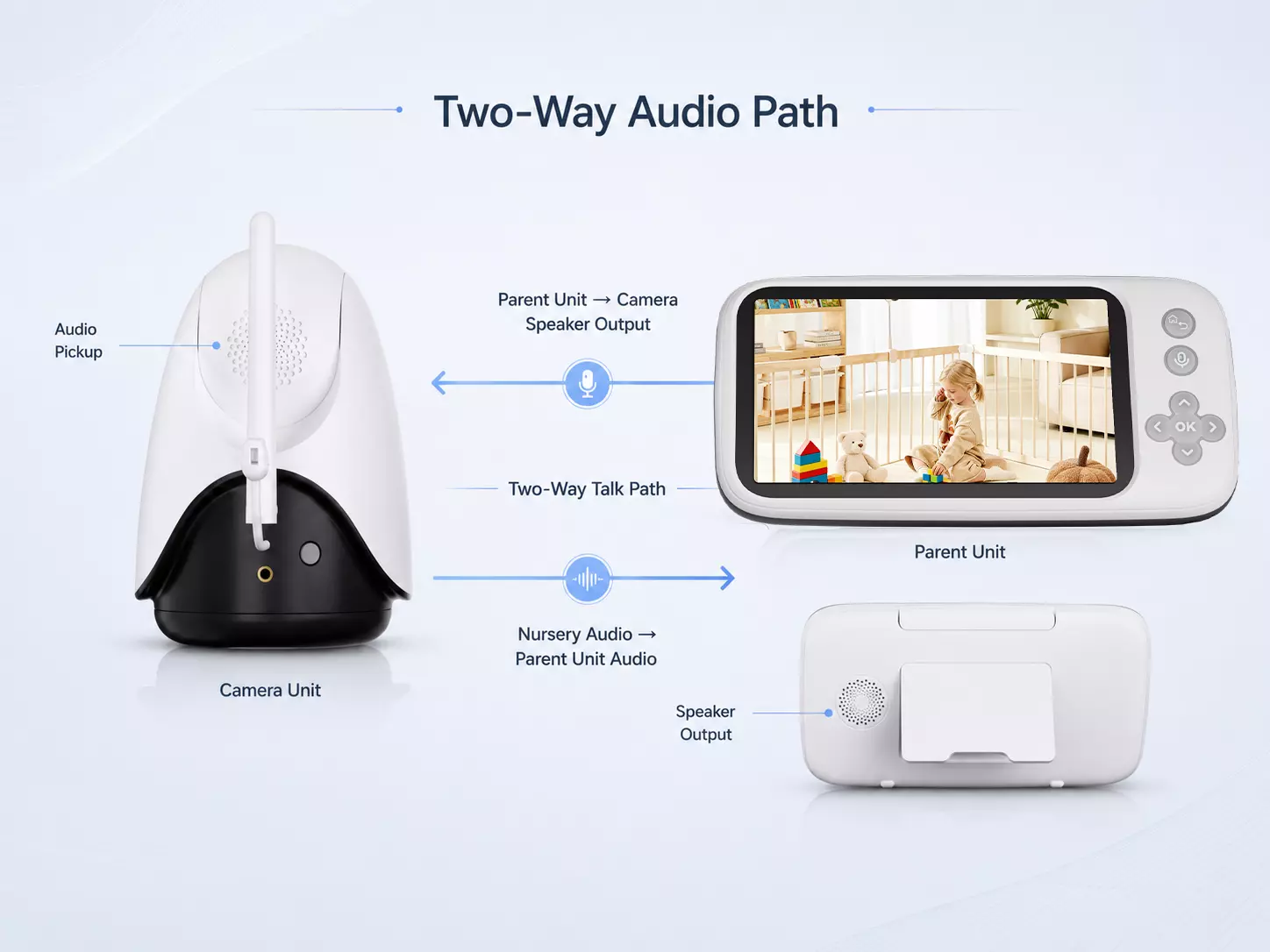

Two-Way Audio Path
01
Two-Way Audio Path
Audio routed locally via 2.4GHz link — no cloud hop, no latency risk.

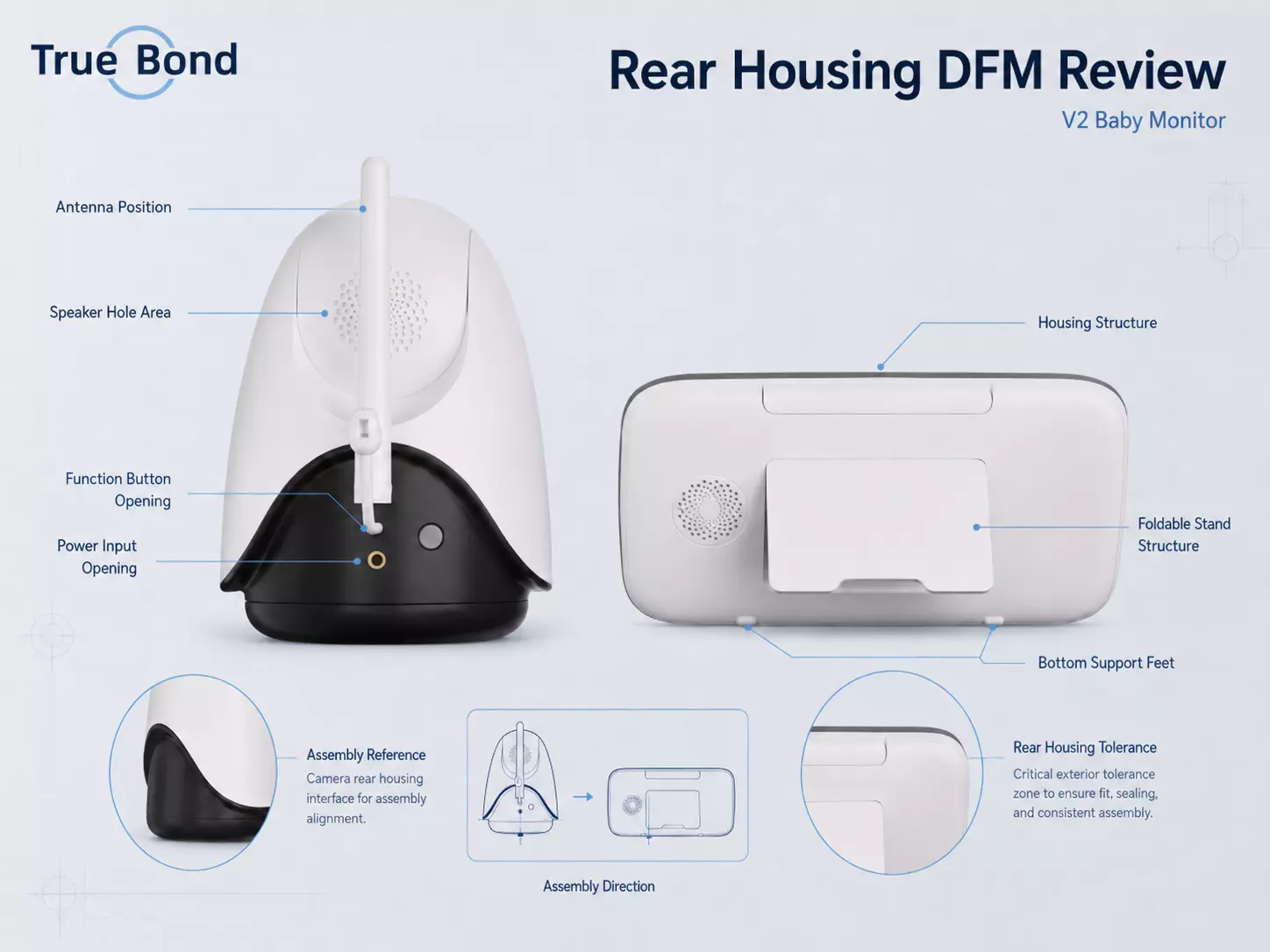

Rear Housing DFM Review
02
Rear Housing DFM Review
DFM-reviewed housing geometry, ready for tooling and volume production.

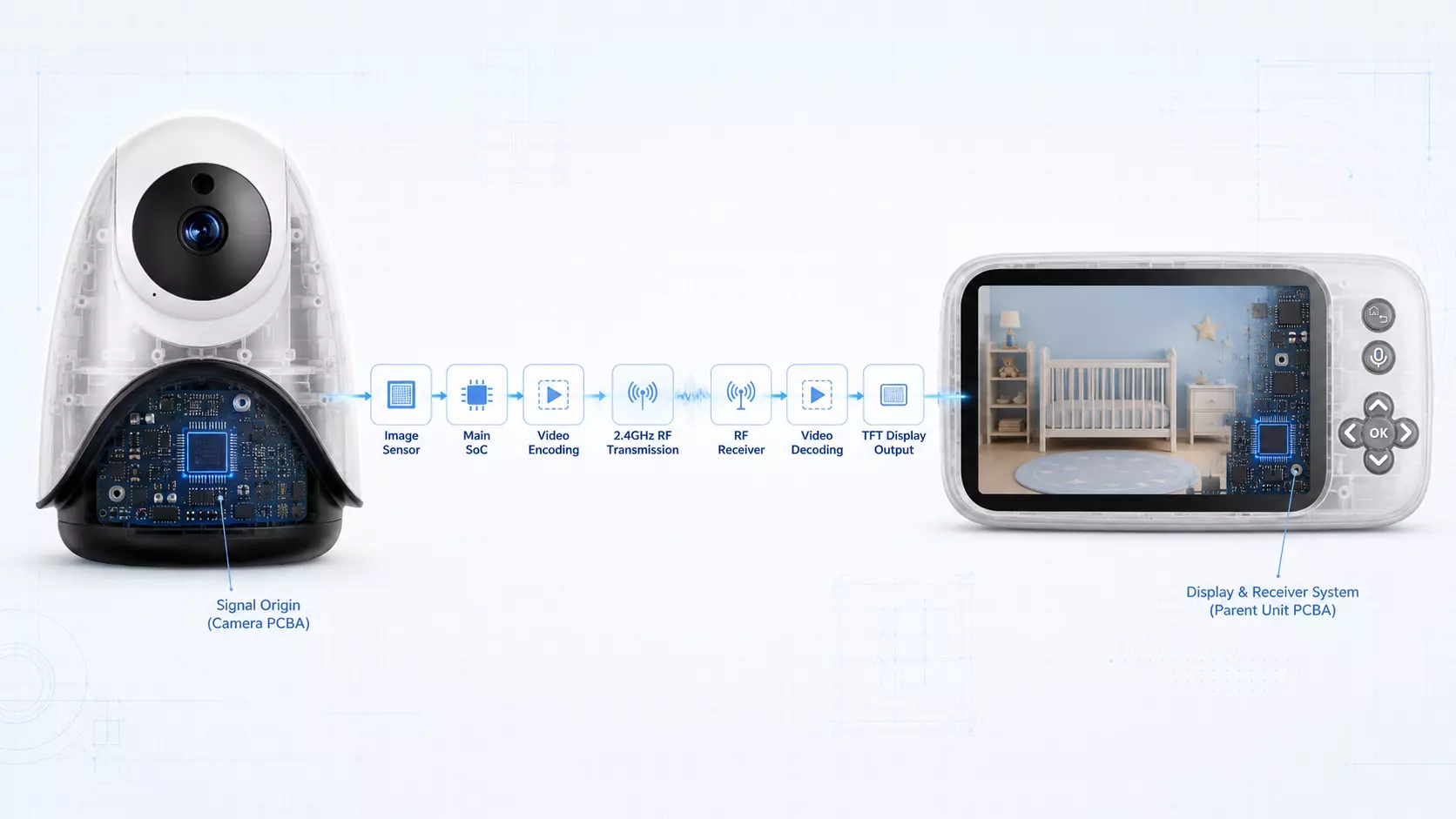

PCBA Signal Flow
03
PCBA Signal Flow
Signal path documented from image sensor to parent screen — fully traceable.

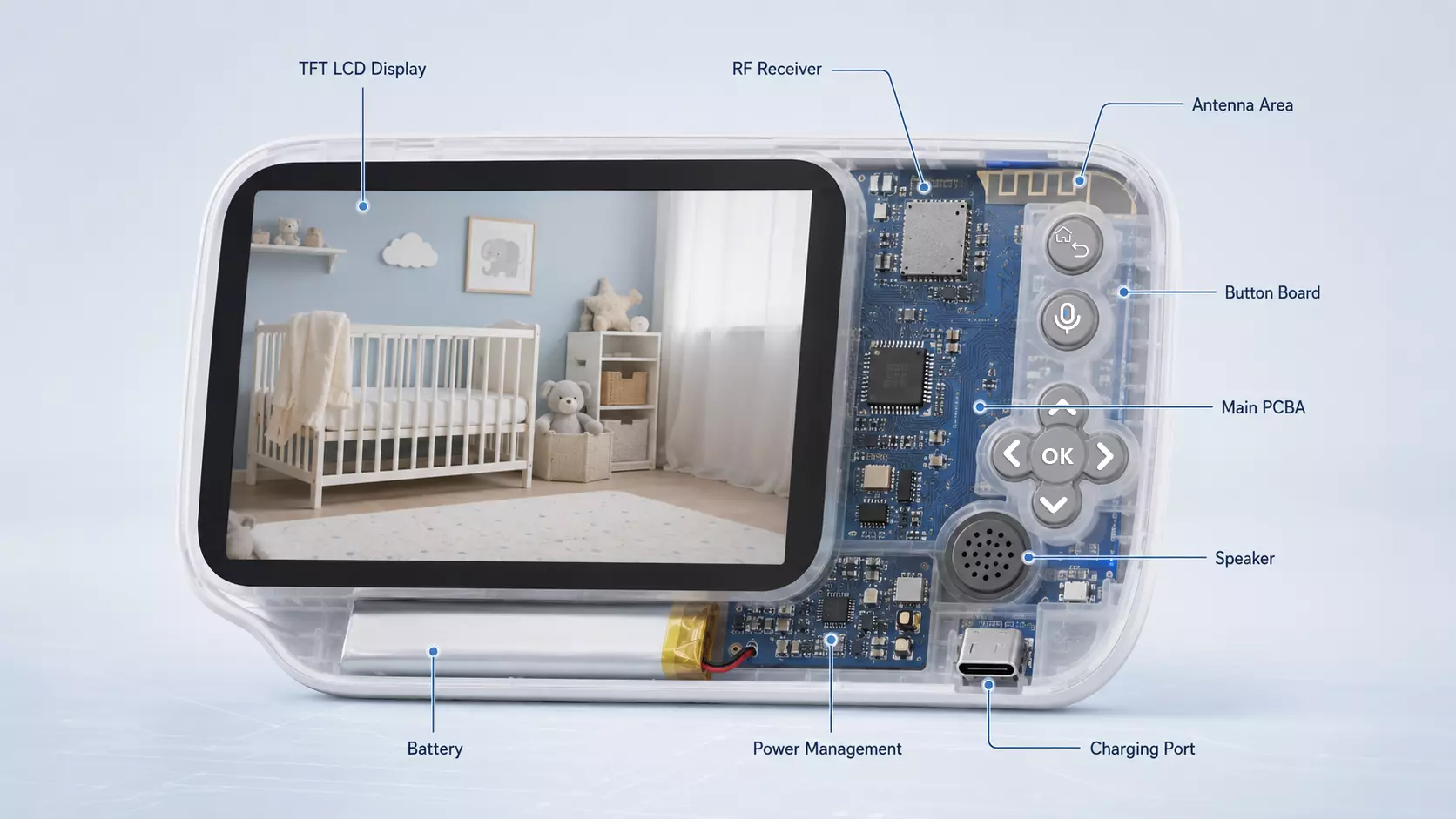

Parent Unit Internal Structure
04
Parent Unit Internal Structure
Every internal component placed and reviewed for long-term reliability.

Make TB-NW50 HD your
flagship monitor

Tell us your market, quantity and customization needs — we’ll reply with a feasible path.
